Decoding the Mystery
1. Visual Inspection
Alright, so you're staring at a couple of wires, and you need to know which one's the good guy (positive) and which one's, well, the slightly less good guy (negative). Don't worry, we've all been there! The most basic way to start figuring things out is a good ol' visual inspection. Many times, the wires themselves will be marked. Look closely!
Often, the positive wire will be red, and the negative will be black. Consider this the electrician's version of a superhero color scheme. If you see red and black, your job's already half done! But beware: Sometimes, mischievous wires wear disguises. Other common color combinations include white (often negative) and a different color for positive. It's like a cable masquerade ball!
Beyond colors, check for any markings on the wire itself. Some wires have a ridge, stripe, or text printed directly on the insulation. The wire with the stripe or ridge is usually the positive one. Think of it like a secret handshake for electricity.
However, never rely solely on color or markings. Someone might have rewired things, or the original markings might be faded or missing. Always double-check with other methods to be certain. Safety first, friends!
2. The Multimeter Method
3. Using a Multimeter for Polarity Check

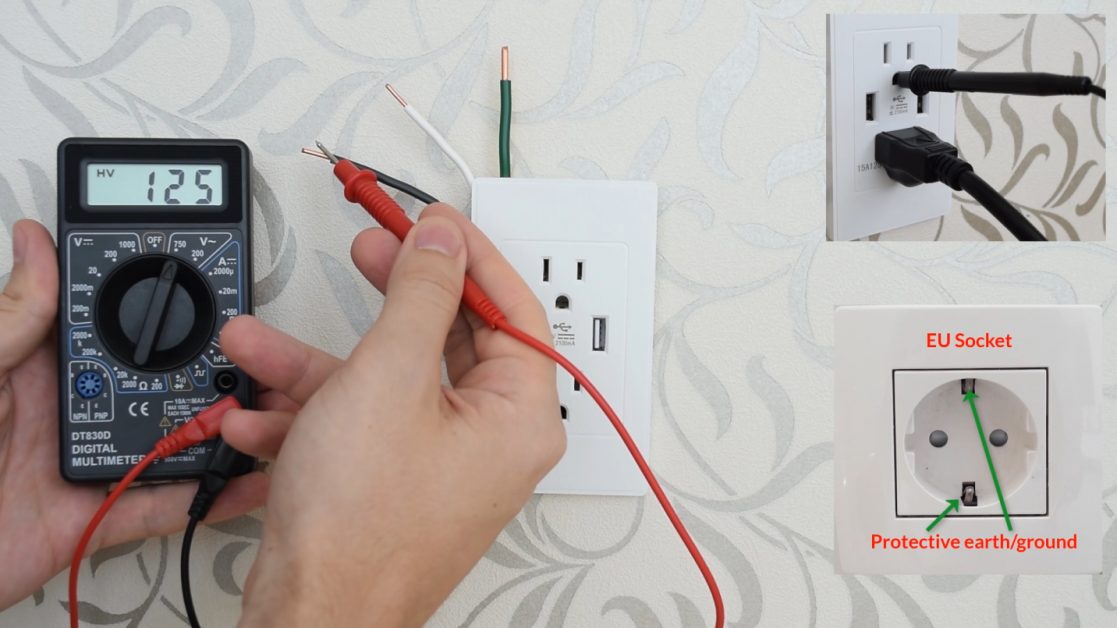

If visual clues are playing hard to get, it's time to bring out the big guns: a multimeter. This handy device is an electrician's best friend. It allows you to precisely measure voltage, and more importantly, determine polarity. Think of it as the Sherlock Holmes of electrical testing.
First, set your multimeter to the DC voltage setting, usually indicated by a "V" with a straight line and a dashed line underneath. Make sure the range is appropriate for 12V; a 20V setting is usually a good choice. Then, connect the black lead of the multimeter to a known good ground point (like the vehicle's chassis). Next, carefully touch the red lead to one of the 12V wires you're trying to identify.
Read the multimeter display. If you get a reading of approximately +12V (or something close, depending on the battery charge), then congratulations! That wire is your positive wire. If you get a reading of -12V (or a negative value), then that's your negative wire. Just remember to observe the negative sign to confirm polarity.
If you get a reading of 0V (or very close to it), it could mean the wire isn't connected to anything, or the circuit isn't complete. Try testing the other wire or checking your connections before jumping to any conclusions. You need a complete circuit to get an accurate reading. Also, make sure your multimeter is functioning correctly and has a good battery.
4. The Test Light Technique
5. Test Light Method for Polarity
Don't have a multimeter handy? No sweat! A test light can also help you sniff out the positive and negative wires, albeit in a slightly less precise way. A test light is a simple device with a bulb that lights up when it receives power. It's like a low-tech voltage detector.
Connect the alligator clip of the test light to a known good ground point. Then, touch the probe to one of the 12V wires. If the light illuminates brightly, you've likely found the positive wire. If the light doesn't light up, try the other wire. If the light still doesn't light up, you might not have a good ground connection or a complete circuit.
Keep in mind that a test light is less precise than a multimeter. It only tells you if voltage is present, not the exact voltage level. However, it's a quick and easy way to identify positive and negative wires in a pinch. Just remember to double-check your results with another method if accuracy is crucial.
A word of caution: Test lights draw a small amount of current, so be careful when testing sensitive circuits. Avoid prolonged contact to prevent any potential damage. Also, make sure your test light is rated for 12V systems to prevent it from burning out.
6. Understanding Wire Gauges and Current
7. Wire Gauge and Polarity
While figuring out the polarity, it's a good idea to take a peek at the wire gauge, as that dictates the current it can safely handle. Wire gauge is the thickness of the wire; lower numbers mean thicker wires, which can handle more current. The polarity of the wire doesn't influence the wire gauge or current-carrying capacity. It's all about how much "juice" the wire can safely deliver, regardless of whether it's positive or negative.
Why does this matter? Well, if you're connecting a device that draws a lot of power (like a high-wattage light or a powerful amplifier), you'll need to make sure the wire is thick enough to handle the current. Using a wire that's too thin can cause it to overheat, melt, and potentially start a fire. Think of it like trying to force too much water through a narrow pipe.
Look for markings on the wire insulation that indicate the gauge. Common gauges for 12V systems include 10, 12, 14, and 16 AWG (American Wire Gauge). Always consult a wiring chart or electrical professional to determine the appropriate wire gauge for your specific application. It's better to be safe than sorry when dealing with electricity.
Remember, identifying positive and negative is only part of the battle. Understanding the wire gauge and current capacity is essential for ensuring a safe and reliable electrical connection. Don't underestimate the importance of proper wiring practices!
8. Safety First! Before You Start Probing
9. Safety Precautions
Okay, before you go poking around with wires, let's have a quick chat about safety. Electricity can be dangerous if not treated with respect. Always disconnect the power source before working on any electrical system. This usually means disconnecting the battery's negative terminal. Think of it as hitting the "pause" button on the electricity flow.
Wear appropriate safety gear, such as safety glasses and insulated gloves. This will help protect you from potential shocks or sparks. Never work on electrical systems in wet or damp conditions. Water and electricity are a dangerous combination. Keep a fire extinguisher nearby, just in case.
If you're not comfortable working with electricity, don't hesitate to call a qualified electrician. It's better to leave it to the professionals than risk injury or damage to your vehicle or equipment. There's no shame in admitting you need help. Your safety is paramount.
Double-check all your connections before restoring power. Make sure all wires are securely connected and properly insulated. Avoid leaving any bare wires exposed, as this can create a short circuit or electrical hazard. Always take your time and be thorough. Rushing through the job can lead to mistakes and potential problems.
10. FAQ
Q: What happens if I connect the positive and negative wires backwards?
A: In many cases, connecting wires backwards can cause damage to the connected device. Some devices have reverse polarity protection, but it's always best to avoid this situation entirely. At worst, it can cause a short circuit, blowing a fuse, damaging the device, or even starting a fire. Double-check your wiring before connecting any power source.
Q: Can I use a regular light bulb to test for polarity?
A: While you could theoretically use a regular light bulb, it's not recommended. Test lights are designed for this purpose and offer a safer and more reliable method. Regular light bulbs can draw too much current, potentially damaging sensitive circuits. Stick to a proper test light for accurate and safe polarity testing.
Q: What if the wires are the same color?
A: If the wires are the same color and have no markings, you'll need to rely on a multimeter or test light to determine polarity. Follow the steps outlined earlier in this article to identify the positive and negative wires. Don't guess, as this can lead to serious problems.
Q: Can I determine wire polarity using a compass?
A: No, a compass will not reliably indicate the polarity of a DC wire. While a current-carrying wire does create a magnetic field, the field strength of a 12V wire is typically too weak and inconsistent to accurately deflect a compass needle in a way that reliably indicates polarity. Using a multimeter or test light is the only sure way.
