Understanding AC Capacitors

1. The Basic Rundown of AC Capacitors

So, you're pondering the fascinating world of AC capacitors, and the question of polarity has popped into your head. It's a good question! After all, we're usually pretty careful about polarity with other electronic components. Think LEDs, batteries—messing with polarity there can lead to sparks, smoke, and general electronic unpleasantness. But fear not, AC capacitors are different. Let's explore why.

First, let's quickly recap what a capacitor does. It's like a tiny rechargeable battery, but instead of storing power chemically, it stores electrical energy in an electric field. It does this by accumulating electrical charge on two conductive plates separated by an insulator (called a dielectric). When voltage is applied, charge builds up. When the voltage is removed, the capacitor discharges.

Now, the "AC" part is important. AC stands for alternating current. Unlike DC (direct current), which flows in one direction, AC current constantly reverses direction. This reversal is key to understanding why polarity often doesn't matter for most AC capacitors. I said "most" because there are exceptions, which we'll get to later. Think of it this way: AC is like a swing going back and forth; DC is like a swing only going in one direction, until it crashes to a halt.

Because the voltage is constantly switching direction in an AC circuit, the capacitor is continuously charging and discharging, alternating its own "polarity" to match the incoming current. This makes the inherent polarity of the capacitor less of a critical factor in many applications.

Capacitor Polarity Understanding For Seamless Installation

The Key Difference

2. Spotting the Polarized Culprits

Okay, so I've been saying polarity usually doesn't matter. The reason for the caveat is that the type of capacitor makes all the difference. The main distinction to remember is between electrolytic and non-electrolytic capacitors.

Non-electrolytic capacitors (like ceramic, film, and paper capacitors) are generally non-polarized. This means they can be connected in a circuit without regard for which lead is positive or negative. These are the workhorses of many AC applications precisely because you don't have to worry about polarity. Life is simpler that way!

Electrolytic capacitors, on the other hand, do have a defined polarity. These are typically used in DC circuits where a higher capacitance is needed in a smaller physical size. They achieve this high capacitance by using a chemical electrolyte to form one of the capacitor's plates. However, this chemical process also makes them sensitive to reverse voltage. Applying voltage with the wrong polarity can damage them, sometimes quite spectacularly (think bulging, leaking, or even exploding!).

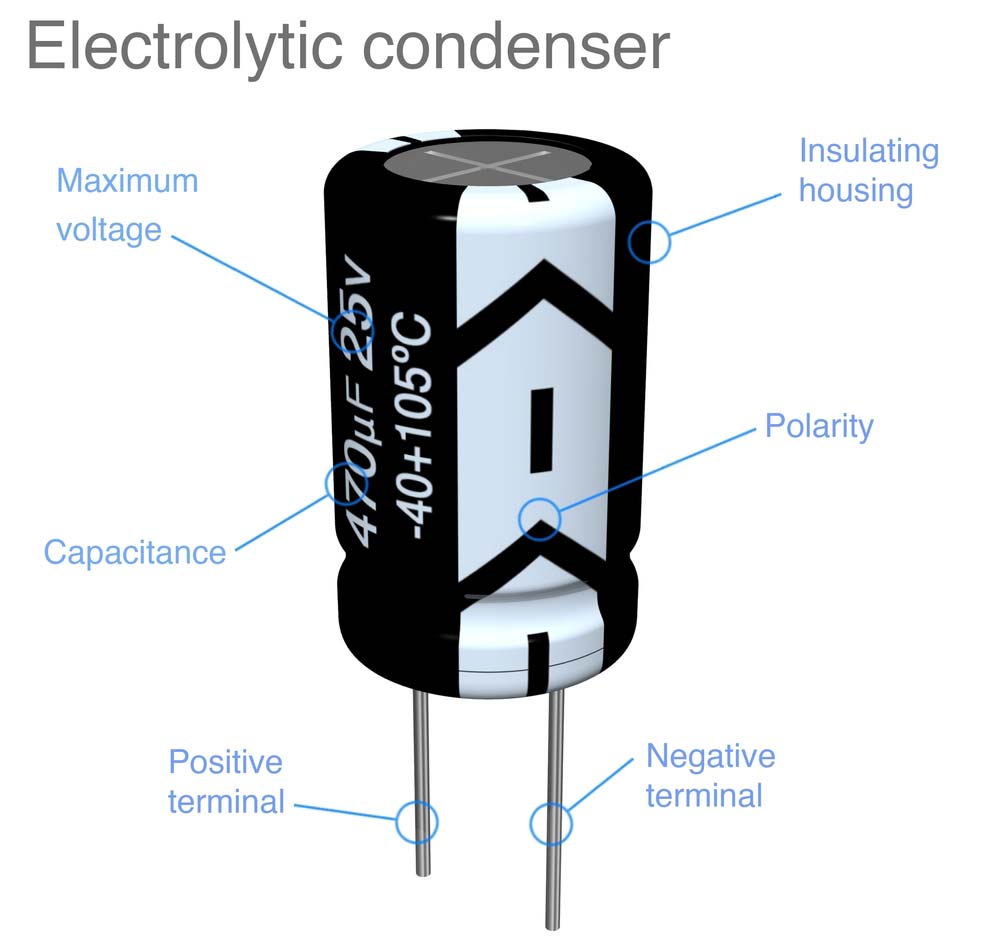

Visually, its usually easy to tell the difference. Electrolytic capacitors are often cylindrical and will have a stripe (usually with minus signs) indicating the negative lead. Non-electrolytic capacitors tend to be smaller, disc-shaped, or rectangular, and they won't have any polarity markings. If in doubt, always check the capacitor's datasheet. It's better to be safe than sorry (and avoid that aforementioned electronic unpleasantness).

Does A Capacitor Have Polarity? ElectronicsHacks

Applications of AC Capacitors

3. Everyday Examples

So where do you find these polarity-agnostic AC capacitors in action? Well, they're everywhere! They are commonly found in motor starting circuits, power factor correction, and filtering applications.

Think of a ceiling fan. The motor that spins the blades often uses a capacitor to provide the initial "kick" to get it started. That capacitor is almost certainly a non-polarized AC capacitor. Similarly, many appliances and electronic devices use AC capacitors to filter out unwanted noise and smooth out voltage fluctuations. These are unseen heroes, quietly working behind the scenes to make our electronics work reliably.

Power factor correction, you say? Whats that? It involves capacitors being used to improve the efficiency of electrical systems. Essentially, power factor correction makes electrical systems more efficient and saves energy, and guess what components make the system work? You guessed it, AC capacitors.

One more interesting field that is not as known involves audio circuits. Certain types of audio equipment use AC capacitors to couple signals between different stages of the amplifier or filter out unwanted frequencies. They're essential for shaping the sound and ensuring that only the desired frequencies get through.

How Does A Capacitor Work TechSparks

What Happens When Polarity Matters (And You Ignore It)

4. Lessons Learned the Hard Way

Let's say you're feeling adventurous (or, more likely, you're not paying attention) and you connect an electrolytic capacitor backwards in an AC circuit. What's the worst that could happen? Well, as I alluded to earlier, the results can range from mildly annoying to downright dramatic.

At best, the capacitor will simply not function correctly. It won't store charge, and the circuit won't behave as expected. You might notice a lack of performance or some other subtle malfunction.

However, in more severe cases, applying reverse voltage to an electrolytic capacitor can cause the electrolyte to break down, leading to a buildup of pressure inside the capacitor. This pressure can cause the capacitor to bulge, leak, or even explode. Exploding capacitors aren't just messy; they can also release harmful chemicals and potentially damage surrounding components.

The moral of the story? Always double-check the type of capacitor you're using and pay close attention to polarity markings, especially with electrolytic capacitors. A little caution can save you a lot of headaches (and potentially some minor property damage).

Understanding The Polarity Of Capacitor Comprehensive Guide

The Exception to the Rule

5. A Twist in the Tale

Just when you thought you had it all figured out, there's a twist! While most electrolytic capacitors are designed for DC circuits, there are specialized electrolytic capacitors designed for AC applications. These are typically called "AC electrolytic capacitors" or "non-polar electrolytic capacitors."

These specialized capacitors are constructed differently than standard electrolytic capacitors. They are designed to withstand the constant voltage reversals of AC current. They achieve this by essentially placing two electrolytic capacitors in series, back-to-back, inside a single package. This configuration allows them to handle both positive and negative voltages without damage.

However, even these AC electrolytic capacitors have limitations. They typically have lower voltage and capacitance ratings compared to their DC counterparts. They are also more expensive. As such, they are generally only used in specific applications where a polarized capacitor is required in an AC circuit.

So, while the general rule is that polarity doesn't matter for AC capacitors (because you'll use non-polarized types), remember that there are exceptions. Always read the datasheet and understand the capacitor's specifications before using it in a circuit. Understanding the application of the capacitors is very crucial.

Capacitor & Types Of Capacitors Fixed, Variable, Polar NonPolar

FAQ

6. Quick Answers to Common Queries

Still have questions swirling around in your head? Let's tackle some common concerns about AC capacitors and polarity:

Q: How can I identify a non-polarized capacitor?

A: Non-polarized capacitors (like ceramic, film, and paper capacitors) generally won't have any polarity markings. They are typically smaller and disc-shaped or rectangular. If you're unsure, check the datasheet!

Q: What happens if I accidentally use a DC electrolytic capacitor in an AC circuit?

A: It's likely to fail, possibly in a dramatic fashion (bulging, leaking, or exploding). Don't do it!

Q: Are there any specific safety precautions I should take when working with capacitors?

A: Always discharge capacitors before handling them, especially high-voltage capacitors. They can store a dangerous amount of energy even when the circuit is turned off. Wear safety glasses to protect your eyes from potential explosions.

Q: Where can I buy quality AC capacitors?

A: Reputable electronics suppliers such as Digi-Key, Mouser Electronics, and Adafruit are good places to start. Ensure you're purchasing from trusted sources to guarantee the components meet safety standards.

Q: Does the ambient temperature affect the lifespan of an AC capacitor?

A: Yes, temperature greatly affects a capacitor's lifespan. Higher temperatures can accelerate the degradation of the dielectric material, leading to a shorter lifespan. Selecting capacitors rated for higher operating temperatures can mitigate this effect.
